選用優質液壓泵站，動力強勁，免維護電池，電力持久。
Use good-quality hydraulic pump unit to provide strong driving force; maintenance-free battery provides durable power supply
特殊軋制工藝制造的”C”型門架，堅固安全。
Gantry made of special-rolled industrial-manufactured C-type steel which is strong and safe
油桶搬運車設計結構簡單輕巧，抱箍式結構，適合鋼制油桶和塑料油桶，操作簡便省力。
Oil drum carrier is of simple-and-light-structure design and hoop-type structure which is fit for operating with steel oil drum and PE oil drum, easy to operate and saves effort
高質量油缸，起升速度快，起升高度能達到2450mm，電動180°翻轉。
Excellent-quality oil cylinder, high lifting speed, maximum lifting height: 2450mm, 180° electrical-driving rotation.
帶電子稱重式，有置零、去皮、稱重功能，精確度達到±3‰。
With electronic scale built-in; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰
適用于化工、食品車間、染料、涂料、膠黏劑、石油、食油等流質、液體的搬運，裝卸、倒料等使用。
Applicable for chemical plants and food plants for transferring, loading & unloading, charging and compounding materials of fluids, such as dyes, paintings ,adhesives, petrol and edible oils, etc.
注：YL450A-1 帶電子稱重
Note: Electronic weighting device is built in YL450A-1

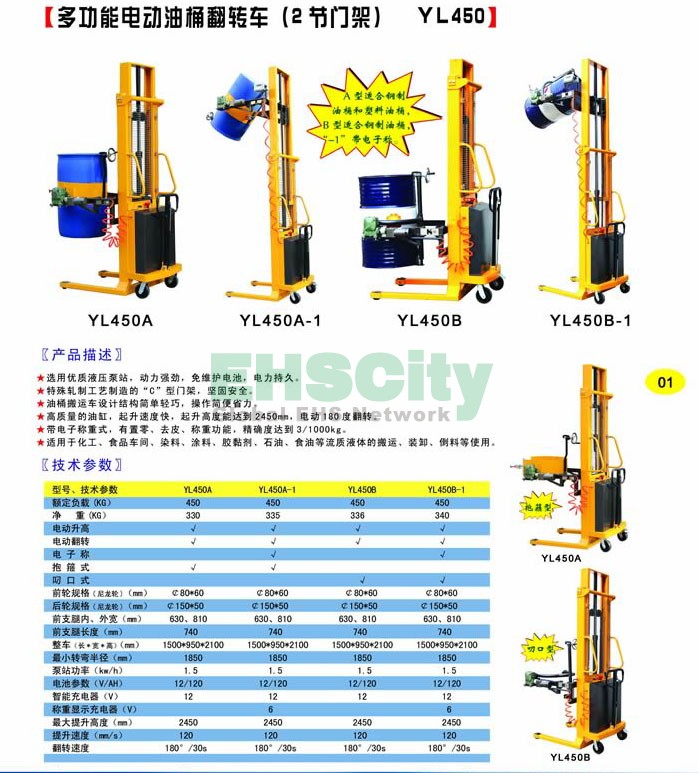

| 型號 Model |
額定負載 Loading Weight (KG) |
凈重 Net Weight (KG) |
腳輪規格 Wheel Dimension (mm) |
前支腿內、外寬 Inner/Outer Width of Front Leg (mm) |
整車尺寸 Outline dimensions (mm) |
轉彎半徑 Turning Radius (mm) |
泵站功率 Pump Unit Power (kw/h) |
電池參數Battery Parameter (Ah/V) |
提升高度 Lifting Height（mm） |
提升速度Lifting Speed（mm/s） |
| YL450A |
450 |
304 |
Ф80*60 Ф150*50 |
630、810 |
1600*950*1920 |
1750 |
1.5 |
120 |
